ACTIVE POD Pioneer in action
Pioneer

Your go-anywhere trail POD

The Pioneer is built for rough roads and real overlanding. High-clearance trailing arm suspension, electric brakes, and a heavy-duty galvanised chassis turn the same enclosed POD body into a stable, confident partner on the roads less travelled.

ACTIVE POD Pioneer
Best ForOverlanding, remote hunting and fishing, extended off-grid trips
Tow VehicleHalf-ton and larger trucks or capable SUVs
Payload1,565 lbs
Warranty5-Year Structural
Use Cases

One trailer that earns its space all week.

Overland routes

Match your trail-capable truck or SUV with a trailer that keeps up over corrugations, washouts, and rutted tracks.

Remote hunts & fishing trips

Keep gear, food, and clothing sealed and secure while you travel into remote areas where dust, mud, and weather are part of the journey.

Long-distance mixed terrain

From highways to forest roads, the Pioneer keeps its composure and protects your kit so you arrive ready—not repacking.

ACTIVE POD Pioneer view 1

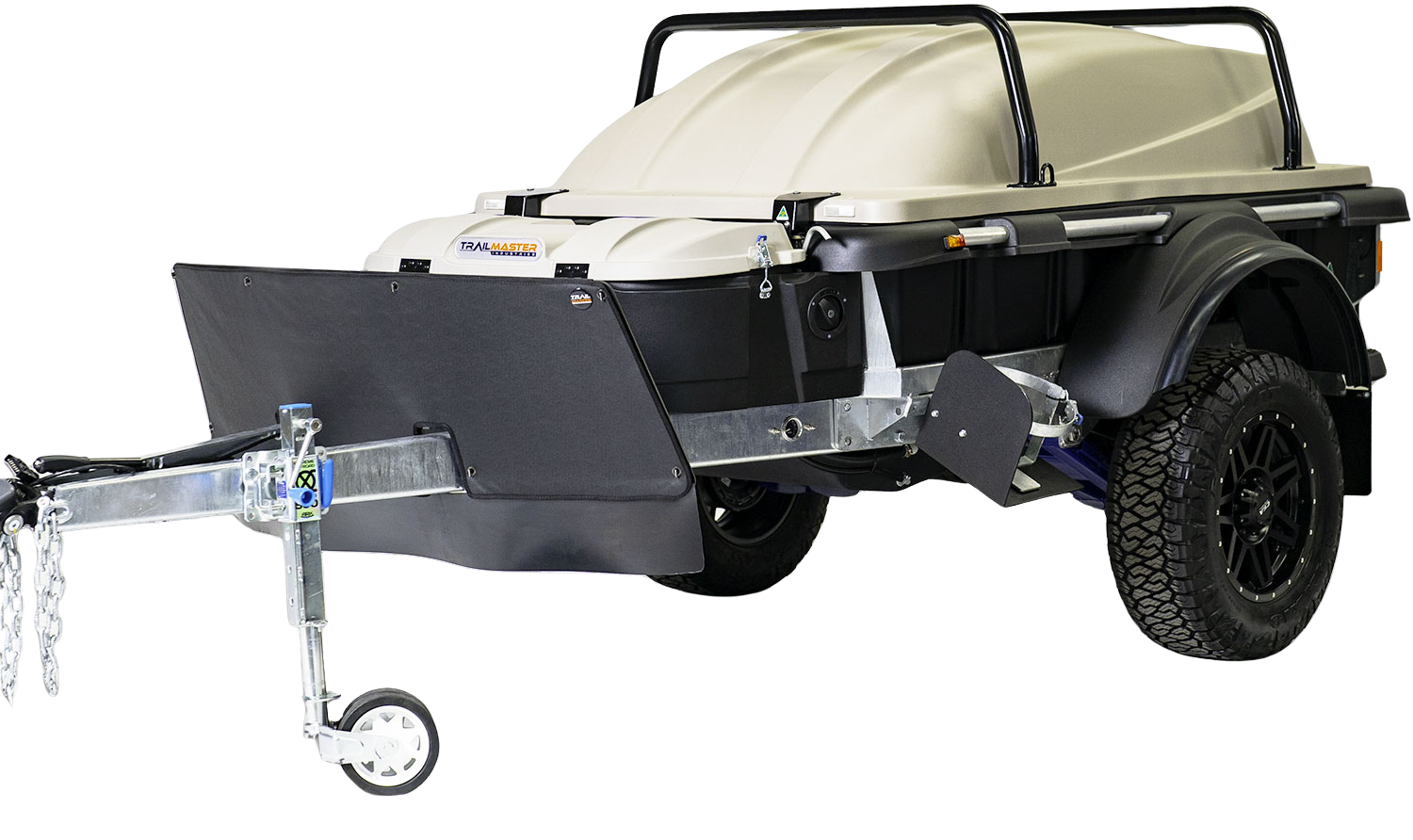

ACTIVE POD Pioneer view 2
Key Features

Off-road upgrades that matter.

TUFFRIDE trailing arm suspension (Airbag ready)
10" Electric brakes standard
OzHitch coupling included
Jerry can & gas bottle holders standard
12v LED flood light standard
75" drawbar for stability
High ground clearance for off-road
Real Adventures

See the Pioneer In Action

From weekend getaways to backcountry expeditions, owners put their Pioneer to the test.

Technical Details

Pioneer Specifications

Dimensions

Overall Length168"
Overall Width73"
Overall Height58"
POD Lid Dimensions83" (L) x 50" (W) x 15" (H)
Enclosed Volume62 ft³

Weight & Capacity

Dry Weight1,190 lbs
Max Gross Weight2,755 lbs
Max Payload1,565 lbs
Axle Rating3,500 lbs

Chassis & Suspension

SuspensionTUFFRIDE Trailing Arm Independent with EFS Shockers (Airbag ready)
Brakes10" Electric (standard)
Drawbar75"

Wheels & Coupling

Tyre Size16" All Terrain
Coupler TypeOzHitch Coupling
Ground ClearanceHigh clearance (off-road optimised)
Electrical7-pin round

Equipment & Options

Standard Equipment

  • Heavy Duty Independent Trailing Arm by TUFFRIDE with EFS Shockers
  • 10" Electric brakes
  • OzHitch coupling
  • 75" drawbar
  • Hot-dip galvanised steel chassis
  • Enclosed POD body with dual gas strut lid
  • Lockable latches for POD lid
  • Integrated front storage box
  • Underbody spare wheel carrier winch
  • Roof mount bars
  • Jerry can holder
  • Gas bottle holder
  • 12v LED POD integrated flood light
  • 507 lb rated integrated tub anchor points
  • Removeable POD lid hinges
  • LED exterior lighting
  • 5-year structural warranty

Optional Upgrades

  • Airbag suspension kit
  • 17" or 18" alloy wheels
  • Stone guard with padded shield
  • Cross bars (59")
  • Side panels for roof bars
  • Hitch for bicycle carrier
  • Tub dividers
  • 20 gal water tank
  • Overhead mounting frame
  • Stabiliser kit
  • High load gas struts
  • Off-road coupling (DO35)
Browse All Accessories
FAQ

Common Questions

What brake controller do I need for the Pioneer?

The Pioneer uses standard electric brakes compatible with most modern in-cab brake controllers. Your dealer can recommend and fit a suitable controller for your tow vehicle.

Can I tow the Pioneer on difficult off-road tracks?

The Pioneer is engineered for rough terrain and "roads less travelled." As with any trailer, your actual capability depends on driver skill, tow vehicle, loading, and local conditions. Always drive within your limits.

What is the ground clearance on the Pioneer?

The Pioneer features high-clearance trailing arm suspension that provides significantly more ground clearance than standard models. See the full specs for exact measurements.

Ready for your Pioneer?

Get a quote on your ideal Pioneer setup, or talk to a dealer about options and availability.

Get a Pioneer QuoteCompare All Models
